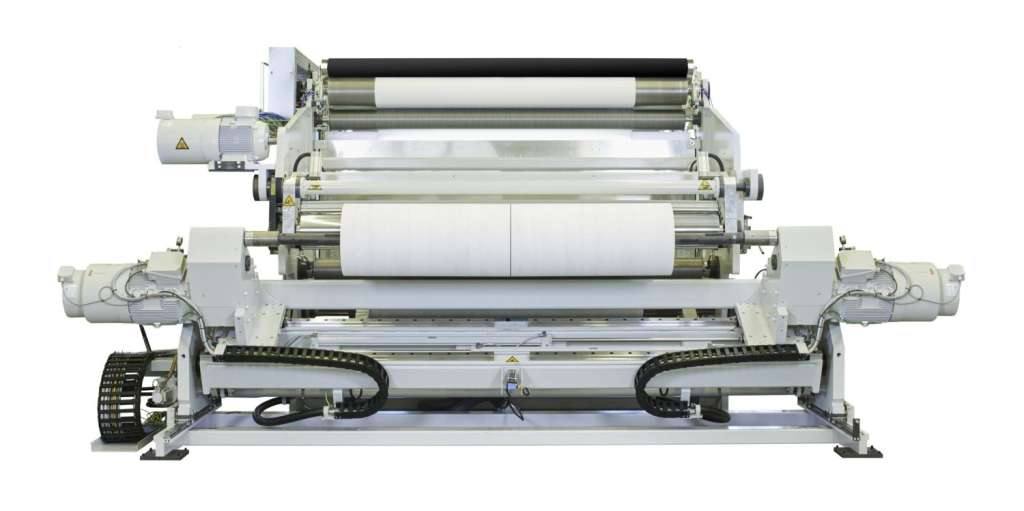

The machines in the ReReeler series are compact and extremely economical rewinding machines.
They are particularly well suited for rewinding almost any type of material, as well as for removing defective sections from jumbo rolls. Material or print inspection devices can be installed between the unwinding and rewinding sections. Additionally, auxiliary units such as perforation and web cleaning systems can be integrated.
Features/Options (as a Roll Doctor):
• Add-ons such as defect detection or auxiliary units
• Add-ons including cutting and splicing tables to remove defective sections
• Integration of an edge strip trimming system
Both the unwinding and rewinding mechanisms are designed to be “shaftless.” This allows the roll to be picked up directly from the floor or a pallet. No tension shafts are required.
| Working width | 15,8 – 98,4 in. |
| Parent roll weight | 8818,5 lb |
| Unwind diameter | Ø 62,9 in. |
| Core diameter | Ø 2 – 7,9 in. |
| Slitting systems | shear cut, razor blade cut, crush cut |
| Slitting width | Edge trim and center cut |
| Rewind diameter | max. Ø 62,9 in. |
| Machine speed | max. 3937 fpm |
| Materials to be processed | packaging films, soft and hard films, papers, laminates, aluminum composite materials |
